VFD Pumpjack Package
Amtech offers solutions in all the processes of Upstream and Midstream in Oil & Gas Industry. Our Solutions can enhance operational safety, efficiency, productivity, energy conservation and sustainability. VFD Pumpjack Package is designed to meet the challenging requirements of Oil & Gas Industry.
- Range: 10 HP – 100 HP
- Voltage: 400V System (380 – 480V)
- Phase: 3-Phase

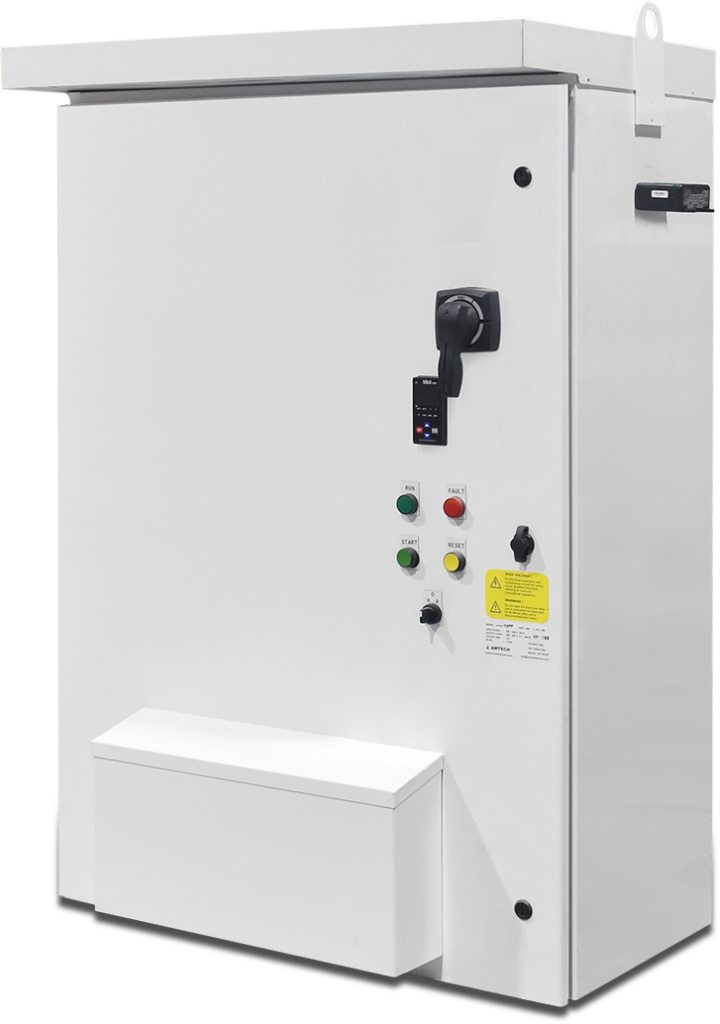

The ADAPT Pump Jack System with a Variable Frequency Drive (VFD) is a packaged solution designed to match pumping performance to reservoir conditions. As a smart rod pump control system, it replaces traditional contactor boxes by integrating all components into a single enclosure.
This enhanced, all-in-one package simplifies field installation, improves service support, and ensures reliability with a pre-wired, factory-tested panel that minimizes potential interference issues.
- Pre-configured parameters for Pumpjack / Sucker Rod / Artificial Lift applications
- Compatible with all Pump Off Controller (POC)
- NEMA 3R outdoor rated VFD package
- Sustain 122 °F (50 °C) heat
- User friendly package
- Lightning protected
- Protection from line power spikes
- Compatible with single phase supply
- Factory-tested integration
- 24/7 phone technical support
| VFD Pumpjack Standard Package (380 ~ 480VAC) | |||||||
| No. | Part Number | Heavy Duty | DIMENSIONS-INCH (MM) | ||||
| Motor HP | kW | AMPS | |||||
| H | W | D | |||||
| 1 | ADAPT-030 | 30 | 22 | 45 | 41" (1050) | 24" (600) | 12" (300) |
| 2 | ADAPT-040 | 40 | 30 | 62 | 47" (1200) | 24" (600) | 14" (350) |
| 3 | ADAPT-050 | 50 | 37 | 74 | 47" (1200) | 24" (600) | 14" (350) |
| 4 | ADAPT-060 | 60 | 45 | 91 | 53" (1350) | 36" (900) | 16" (400) |
| 5 | ADAPT-075 | 75 | 55 | 110 | 53" (1350) | 36" (900) | 16" (400) |
| 6 | ADAPT-100 | 100 | 75 | 145 | 53" (1350) | 36" (900) | 16" (400) |
| 7 | ADAPT-150 | 150 | 110 | 215 | 65" (1650) | 36" (900) | 16" (400) |
- Better dynamic response to control pump in motoring & regenerating mode
- Full motor protection, control & monitoring
- Minimize maintenance, extend pump life
- Reduce inrush current, peak power demand and wear & tear
- Reduce downtime and operating cost
- Improve efficiency
- Improve speed control and process optimization
- Energy saving due to resistors less technology
- Enhance operating flexibility
- User friendly system
- Increase safety with Remote access / communication
Your VFD Motor Controller is Always In-Stock
Contact Amtech Drives to get the right VFD solution for your application.
